30Amp/300V 2x12 Position Terminal Block Distribution Module (DIN Rail Mount)
US$7.16
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by t4event.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$7.16
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by t4event.com
Free 30-day returns Details
Product details
| Management number | 233339275 | Release Date | 2026/06/27 | List Price | US$7.16 | Model Number | 233339275 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

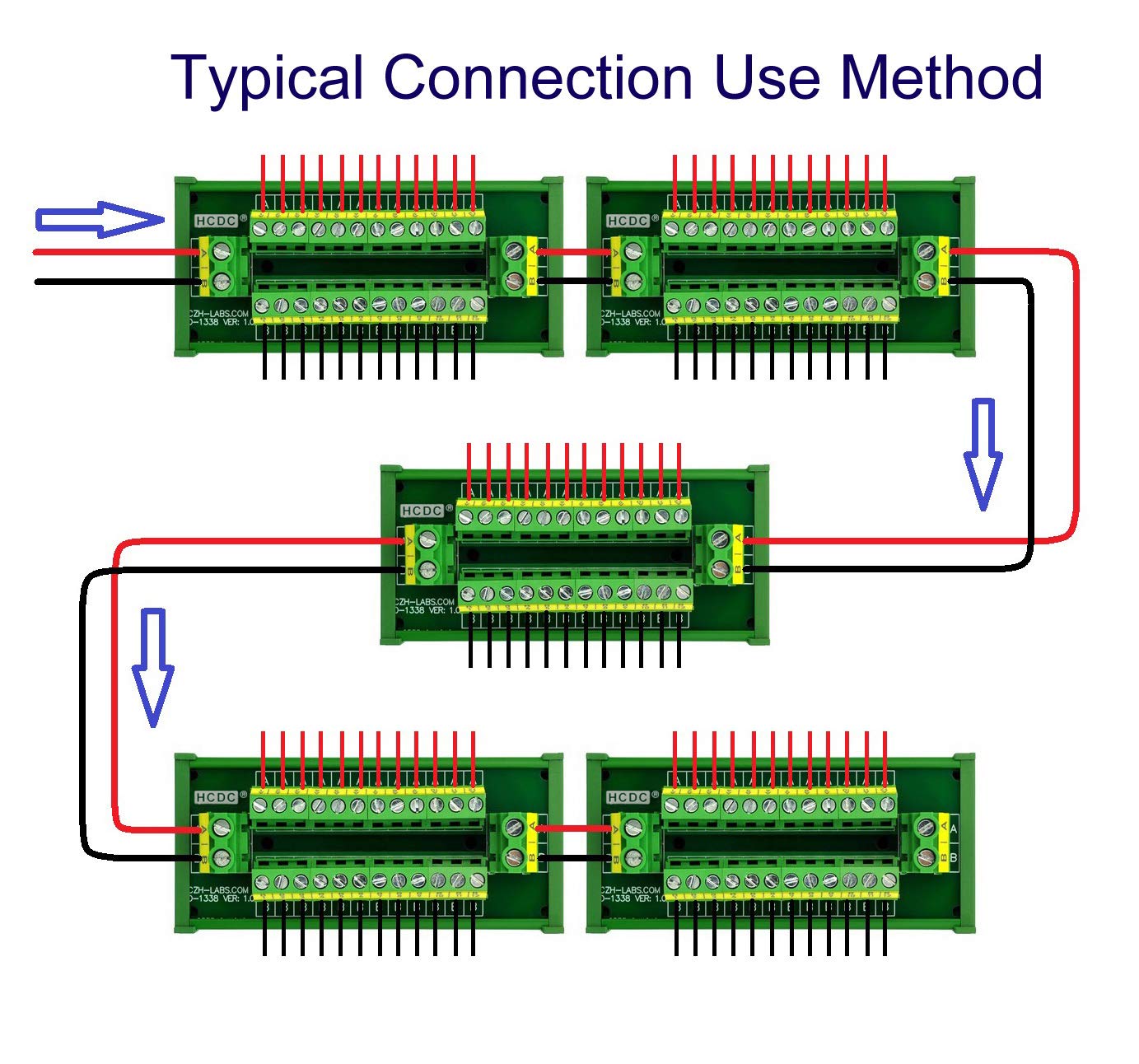

- DIN rail mount 30Amp 300V 2x12 position screw terminal block distribution module. Support for multiple module extension connections.

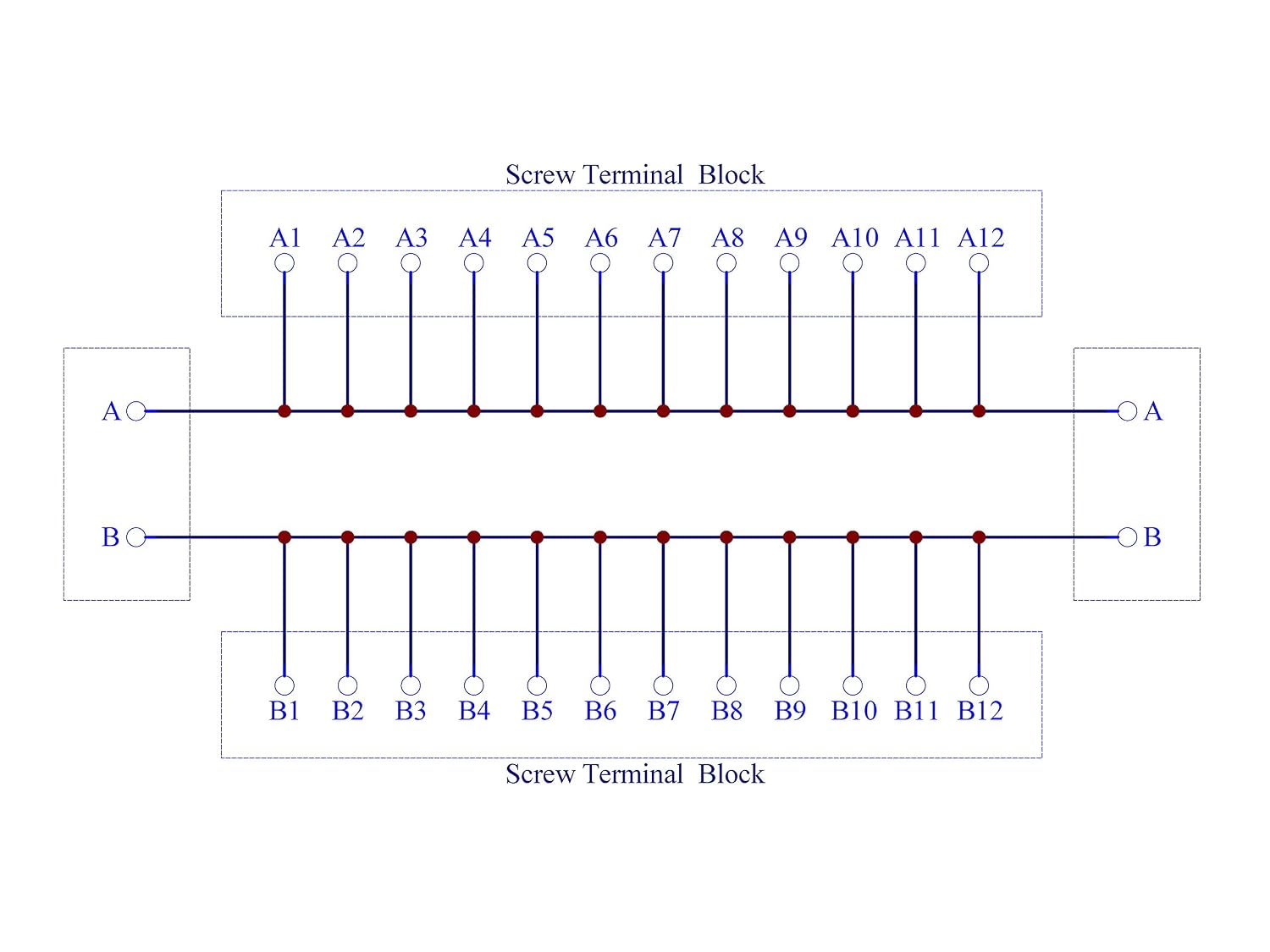

- A / B position maximum current 30Amp(each position). A1~A12 total maximum current 30Amp(total positions). B1~B12 total maximum current 30Amp(total positions). A1~A12 / B1~B12 position maximum current 20Amp(each position). Maximum voltage 300V.
- A / B terminal blocks, Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4.0mm square, Rated voltage 300V, rated current 30Amp. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
- A1~A12 / B1~B12 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated voltage 300V, rated current 20Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
- High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.
| ASIN | B0876W456F |
|---|---|
| Gauge | 26.0 |
| Model | Xiken-TERMINAL_BLOCK-[Product Code] |
| Pitch | 7.62 Millimeters |
| Voltage | 300 Volts |
| Brand Name | HCDC |
| Part Number | MD-D1338T-FBB |
| Manufacturer | Xiken Electronic Technology Co., Ltd. |
| Material Type | Brass, Steel |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 30 Amps |
| Number Of Poles | 12 |
| Number Of Contacts | 12 |
| Number of Positions | 12 |
